J41H, J41W American standard flange stop valve detailed introduction: |
Product Name |
J41H, J41W American Standard Flange Stop Valve |
Product Model |
J41H、J41W |
Nominal diameter |
DN15-400 |
Pressure Range |
150Lb-2500LB |
Valve body material |
Cast steel, stainless steel |
Product Overview
J41H, J41W American standard flange stop valves are suitable for cutting off or connecting pipeline media in various working conditions such as petroleum, chemical, pharmaceutical, fertilizer, and power industries with nominal pressures of 150-2500LB and working temperatures of -29 to 550°C. The drive modes include manual, gear drive, electric, and pneumatic.
Structural features:
1. Streamlined, rising stem with bracket
2. Middle flange bolt connection
3. Loose-fit connection disc
4. Lifting stem and handwheel
5. Bracket and valve cover integrated
6. Bevel gear operation option
7. Standard flange connection
Product Specifications:
Product Specifications |
Design Specifications |
Structure length |
Connection flange |
Test and Inspection |
Pressure-Temperature |
Product Identification |
Supply Specifications |
ASME B16.34 |
ANSIB 16.10 |
ANSIB 16.5 |
API598 |
ASME B 16.34 |
MSS SP-25 |
ASME B16.34 |
BS 5160 |
BS 5160 |
Main design criteria:
Design and Manufacturing |
Structure length |
Flange size |
Butt welding connection size |
Pressure-Temperature |
Test-Inspection |
ANSI B16.34 BS1873 |
ANSI B16.10 |
ANSI B16.5 |
ANSI B16.25 |
ANSI B16.34 |
API 598 |
Pressure test:
Nominal pressure PN(Lb) |
Strength test |
Water tightness test |
Airtightness test |
MPa |
Lbf/in2 |
MPa |
Lbf/in2 |
MPa |
Lbf/in2 |
150 |
3.0 |
430 |
2.2 |
315 |
0.4-0.7 |
60-100 |
300 |
7.7 |
1110 |
5.7 |
815 |
600 |
15.3 |
2220 |
11.3 |
1630 |
900 |
23.0 |
3330 |
17.0 |
2445 |
1500 |
38.4 |
5560 |
28.2 |
4080 |
2500 |
64.0 |
9255 |
47.0 |
6790 |
Main parts materials and performance:
Valve body, valve cover |
Valve stem |
Sealing surface |
Gasket (ring) |
filler |
Operating temperature |
Applicable media |
WCB |
2Cr13 |
13Cr
STL
Wood Body Material With
Body
Material
Nylon |
Enhanced Flexible Graphite
1Cr13/Flexible Graphite SFB -2 08 Soft Steal F304 F316 F304L F316L
|
Flexible Graphite Enhanced
Flexible Graphite SFB/260 SFP/260 PTFE
|
≤425 |
Water , Steam
,
Petroleum
Products |
WC1 |
38CrMoAl 25Cr2MoV |
≤425 |
WC6 |
≤540 |
WC9 |
≤570 |
C5 C12 |
≤540 |
CF8 |
F304 |
≤200 |
Nitric acid , acetic acid,
urea |
CF8M |
F316 |
CF3 |
F304L |
CF3M |
F316L |

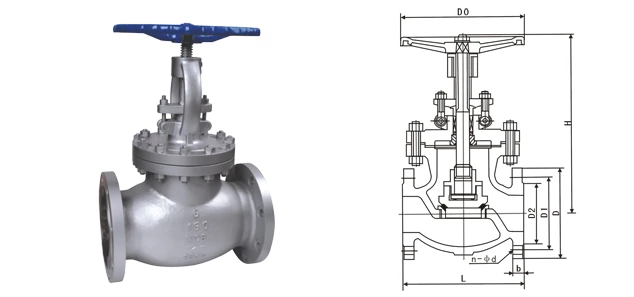

Product structure diagram:

150Lb Main Dimensions and Weight:
DN |
150Lb Raised Face Flange (RF) Main Dimensions (mm) |
weight |
mm |
in |
L |
D |
D1 |
D2 |
b |
n-φd |
H |
D0 |
|
15 |
1/2 |
108 |
89 |
60.5 |
35 |
11.2 |
4-16 |
241 |
100 |
6.9 |
20 |
3/4 |
117 |
98 |
69.9 |
43 |
12.7 |
4-16 |
241 |
100 |
9.8 |
25 |
1 |
127 |
108 |
79.2 |
51 |
14.2 |
4-16 |
242 |
125 |
13.5 |
32 |
11/4 |
140 |
117 |
89 |
63 |
16 |
4-16 |
280 |
160 |
19.5 |
40 |
11/2 |
165 |
127 |
98.6 |
73 |
17.5 |
4-16 |
286 |
160 |
28.5 |
50 |
2 |
203 |
152 |
120.7 |
92 |
19 |
4-19 |
368 |
200 |
18 |
65 |
21/2 |
216 |
178 |
139.7 |
105 |
22.4 |
4-19 |
387 |
200 |
30 |
80 |
3 |
241 |
190 |
152.4 |
127 |
24 |
4-19 |
411 |
250 |
41 |
100 |
4 |
292 |
229 |
190.5 |
157 |
24 |
4-19 |
454 |
250 |
64 |
125 |
5 |
356 |
254 |
216.0 |
186 |
24 |
8-22.5 |
455 |
350 |
86 |
150 |
6 |
406 |
279 |
241.3 |
216 |
25.4 |
8-22.5 |
541 |
350 |
113 |
200 |
8 |
495 |
343 |
298.5 |
270 |
28.4 |
8-22.5 |
651 |
450 |
178 |
250 |
10 |
622 |
406 |
362.0 |
324 |
30.2 |
12-25.4 |
800 |
450 |
270 |
300 |
12 |
698 |
483 |
431.8 |
381 |
32 |
12-25.4 |
1231 |
600 |
350 |
350 |
14 |
787 |
533 |
476.3 |
413 |
35 |
12-29 |
1450 |
600 |
460 |
400 |
16 |
914 |
597 |
539.8 |
470 |
36.6 |
26-29 |
1645 |
600 |
590 |
300Lb main dimensions and weight:
DN |
300Lb Raised Face Flange (RF) Main Dimensions (mm) |
weight |
15 |
1/2 |
152 |
95 |
66.5 |
35 |
14.2 |
4-16 |
241 |
140 |
7.7 |
20 |
3/4 |
178 |
117 |
82.5 |
43 |
16 |
4-19 |
241 |
140 |
11.3 |
25 |
1 |
203 |
123 |
89 |
51 |
17.5 |
4-19 |
283 |
160 |
16.8 |
32 |
11/4 |
216 |
133 |
98.5 |
63 |
19 |
4-19 |
320 |
200 |
21.2 |
40 |
11/2 |
229 |
155 |
114.3 |
73 |
20.6 |
4-22.5 |
322 |
200 |
32.6 |
50 |
2 |
267 |
165 |
127 |
92 |
22.4 |
8-19 |
399 |
200 |
25 |
65 |
21/2 |
292 |
190 |
149.4 |
105 |
25.4 |
8-22.5 |
438 |
250 |
30 |
80 |
3 |
318 |
210 |
168.1 |
127 |
28.4 |
8-22.5 |
464 |
280 |
35 |
100 |
4 |
356 |
254 |
200.2 |
157 |
31.8 |
8-22.5 |
565 |
350 |
56 |
125 |
5 |
400 |
279 |
235 |
186 |
35 |
8-22.5 |
614 |
350 |
96 |
150 |
6 |
444 |
318 |
269.7 |
216 |
36.6 |
12-25.4 |
717 |
400 |
120 |
200 |
8 |
559 |
381 |
330.2 |
270 |
41.2 |
12-25.4 |
930 |
500 |
212 |
250 |
10 |
622 |
444 |
387.4 |
324 |
47.8 |
16-28.5 |
1012 |
550 |
330 |
300 |
12 |
711 |
521 |
450.8 |
381 |
50.8 |
16-32 |
1231 |
600 |
472 |
350 |
14 |
762 |
584 |
514.4 |
413 |
54 |
20-32 |
1450 |
600 |
715 |
400 |
16 |
864 |
648 |
571.5 |
470 |
57.2 |
20-35 |
1645 |
600 |
920 |
600Lb main dimensions and weight:
DN |
600Lb Raised Face Flange (RF) Main Dimensions (mm) |
weight |
mm |
in |
L |
D |
D1 |
D2 |
b |
n-φd |
H |
D0 |
|
15 |
1/2 |
165 |
95 |
66.5 |
35 |
14.5 |
4-16 |
285 |
100 |
7.8 |
20 |
3/4 |
190 |
117 |
82.5 |
43 |
16 |
4-19 |
285 |
125 |
12.5 |
25 |
1 |
216 |
124 |
89 |
51 |
17.5 |
4-19 |
313 |
160 |
17.5 |
32 |
11/4 |
229 |
133 |
98.5 |
63 |
21 |
4-19 |
328 |
160 |
23.5 |
40 |
11/2 |
241 |
156 |
114.3 |
73 |
22.5 |
4-22.5 |
365 |
180 |
38.5 |
50 |
2 |
292 |
165 |
127 |
92 |
33 |
8-19 |
444 |
200 |
35 |
65 |
21/2 |
330 |
190 |
149.4 |
105 |
36 |
8-22.5 |
483 |
250 |
50 |
80 |
3 |
356 |
210 |
168.1 |
127 |
39 |
8-22.5 |
533 |
250 |
60 |
100 |
4 |
432 |
273 |
216 |
157 |
45 |
8-25.4 |
622 |
350 |
110 |
125 |
5 |
508 |
330 |
266.7 |
186 |
52 |
8-28.5 |
750 |
350 |
200 |
150 |
6 |
559 |
356 |
292.1 |
216 |
55 |
12-28.5 |
800 |
450 |
230 |
200 |
8 |
660 |
419 |
349.3 |
270 |
63 |
12-32 |
927 |
500 |
410 |
250 |
10 |
787 |
508 |
431.8 |
324 |
71 |
16-35 |
1257 |
600 |
625 |
300 |
12 |
838 |
559 |
489 |
381 |
74 |
20-35 |
1468 |
680 |
860 |
