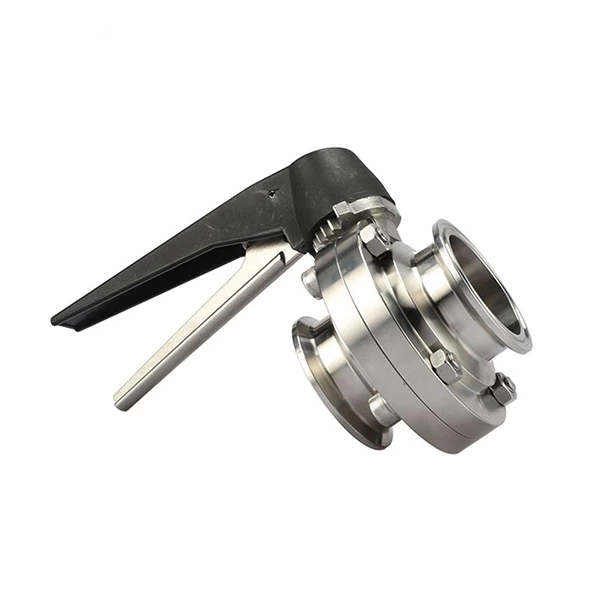

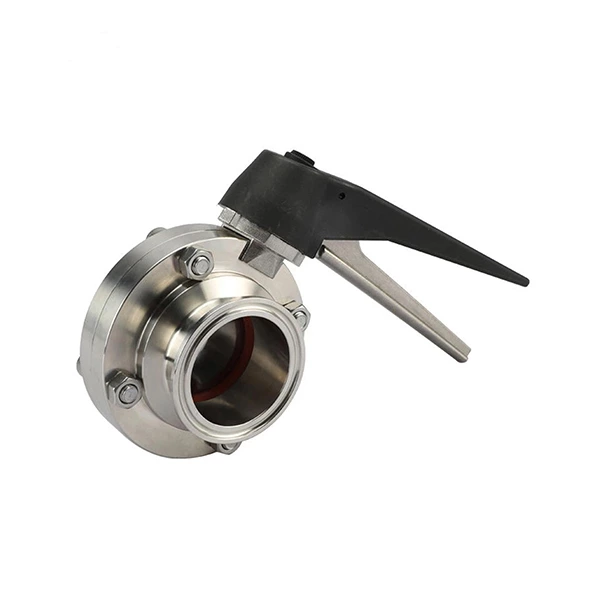

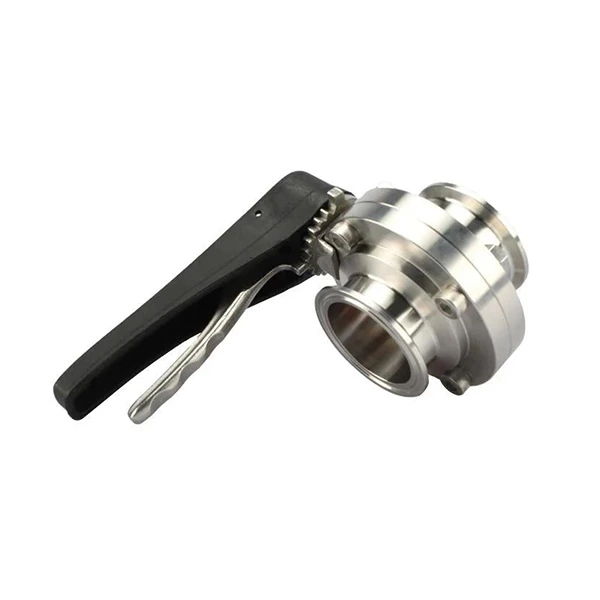

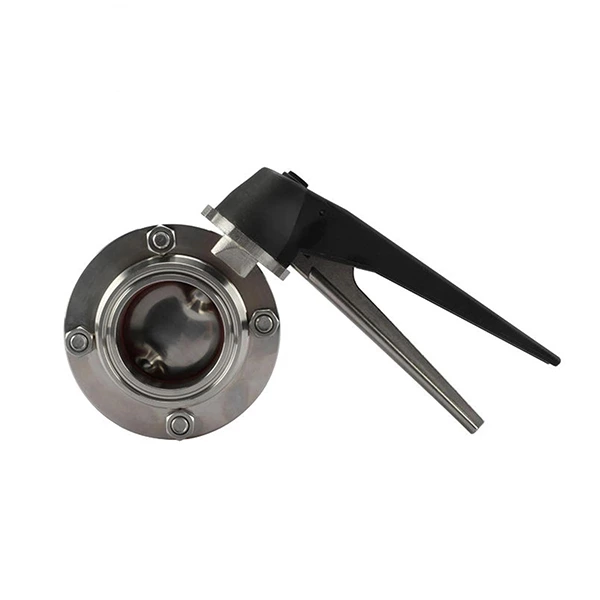

Sanitary Stainless Steel Hygienic Korea 1S 2S 3S 4S Tri-Clamp Butterfly Valve, 12 Positions Plastic Gripper Handle
- Place of Origin::
- Wenzhou, China
- Packing::
- Suitable Packing For Sea/Air Transport
- Quantity::
- 1000000 PCS Per Year
- Payment::
- T/T, L/C, Western Union
- Medium::
- Water, Oil
- Material::
- SS304/SS316L
- Connection::
- Clamped
- Specification::
- 1"-6"
- Pressure::
- 0-10Bar
- Temperature::
- -20°~120°
- Gasket::
- EPDM/SILICON/NBR
Sanitary Stainless Steel Hygienic Korea 1S 2S 3S 4S Tri-Clamp Butterfly Valve, 12 Positions Plastic Gripper Handle
- Our Butterfly valve body could be offered with Weld end, Male end, female end, and Clamp end. Our butterfly valves can be installing with different type handles like 4 position pull handle, 12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.
- The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
- All of the products have been 100% press tested before shipping.
- It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
- EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.
Product Description
| Product: | Sanitary Clamp Butterfly Valve |
| Max working pressure: | 20Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 1"-6", DN25-DN150 |
| Availably connection: | Clamp |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Handle application: | Plastic handle |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical,etc |
